God of War Ragnarok Art Blast

Posted on by
Reply

Sony Santa Monica has published a nice article and video  about Art Blast in latest God of War game showing destruction effects and beautiful environments that can be cracked and damaged during the game.

You can review the whole article here:

Visit God of War Ragnarok Art Blast

Aside in-game physics they have used baked simulations with Pulldownit in Maya adding hand key modifications to get the look they wanted,  indeed Pulldownit plugin allows to fix or modify baked simulation easily by editing animation keys for fragments or rigid bodies.

Besides Cynthia Fenton, breakable artist at Sony Santa Monica Studio, has posted a stunning video showing his work in God of War Ragnarok using Pulldownit plugin for destructions effects, you can see it here:

Amazing job Cynthia, thank you for sharing!

Pulldownit 5.5 for Maya released

Posted on by
6

Pulldownit 5.5 is here and comes with useful updates, Shatter it tool has been multithreaded and highly optimized, getting up to 8x faster shattering with regards to previous release. Chipping areas of the model is also faster and you can discard shatter centers directly in the viewport just by clicking the mouse over it.

Bounded Cracks introduced in version 5.0 has been enhanced with the ability to turn them dynamic at the desired frame, allowing to create easily stress cracks that ends up tearing the surface completely at some moment.

Working in complex destruction scenes is easier and more intuitive, in cases of many objects colliding, dynamic solver has been adjusted to get nice fracture results with default parameters and when two objects impact each other you can decide which one will break in first place simply by reducing its hardness value.

Maya Cache Playback is now supported after baking simulation keys for the whole scene, this allows user to play the simulation at a fast, sustained rate and recover dynamic data afterwards to make changes if needed.

There are also useful improvements to the UI, you can modify parameters for several fractures at once and create several crackers at once or toggle display of all crackers paths with one click.

Last but not least we have fixed quite a few annoying issues from previous version, making the tool more predictable and reliable than ever.

You can review below all performance and usability improvements and you can check the whole list of fixes in the Pulldownit version logs page:

Read the full list of fixes in the Pulldownit web site version logs

Licensed users can access already Pulldownit 5.5 from his account and there is a demo version for Maya 2023 in the Thinkinetic web site.

Shatter New Features

Shatter it multithreaded along with other performance improvements that makes shatter an object in hundreds and thousands of pieces around 8x faster than in previous release.

New ability to remove shatter centers directly in the viewport, when in Shatter it draft mode simply by clicking mouse + ctrl key, the selected shatter center is deleted.

Dynamics New Features

New ability to generate Bounded Cracks until frame , stress crack propagation can be set to last until desired frame, after that it continues as an usual dynamic crack.

Initial velocity can be set for “activation at frame” fracture bodies, linear and angular velocity can be added to static fractures bodies, setting in this way the initial motion direction when the object becomes dynamic.

More intuitive behaviour in collision between fracture bodies, user can decide which of them will break in first place simply by reducing its hardness value. Besides small fragments collisions don’t trigger fracture anymore, therefore fracture activation starts always at the exact impact moment between the two objects.

UI Enhancements

Maya Cache Playback supported after baking PDI keys for the whole scene, deleting PDI data before using Maya Cache Playback is no longer needed, allowing to recover simulation afterwards to make changes if needed.

New option to auto clean all PDI data after baking simulation, this new option allows to use Maya Cache Playback at the fastest speed right after baking PDI keys.

New ability to set parameters for several fracture bodies at once.
New ability to edit name of selected Cracker.
New ability to show/hide all Crackers paths at once.
New ability to set parameters for several Crackers at once.
New ability to create Crackers for all selected curves at once.







Tutorial: Oneiric temple destruction in 3ds Max

Posted on by
1

In this great tutorial Esteban Cuesta show us how to crack and destroy an oneiric temple using Pulldownit 5 in 3ds Max , he explains step by step how to create long cracks over the surface before destroying the whole model to get a nice crumbling effect, worth to review it.

Bounded cracks is a new feature introduced in Pulldownit 5.0
allowing to create cracks over the surface of 3d models and controlling the strenght and extent of the crack easilly.

Final shot here:

Thank you Esteban for this great tutorial !

Cracking an Ancient Statue in Maya

Posted on by
Reply

In this polished tutorial, Esteban Cuesta shows us how to create long cracks over
an ancient statue and shatter it using Pulldownit plugin in Maya,

Bounded cracks is a new feature introduced in Pulldownit 5.0
allowing to create cracks over the surface of 3d models and controlling the strenght and extent of the crack easilly.

Thank you Esteban for this great tutorial!

Pulldownit 5 for 3ds Max released

Posted on by
1

Pulldownit 5 for 3ds Max brings new destruction features and important updates in performance and usability.

Fractures solver computes around 2 times faster and gets more debris in impact areas without the need of further adjustment.

A new ability to shatter along part of a curve lets user refine cracks as many as needed in a visual way, surface cracks can be bounded to create easily nice stress effects and reversing a crack involves just one click, all of this making the creation and adjustment of surface cracks easier than ever.

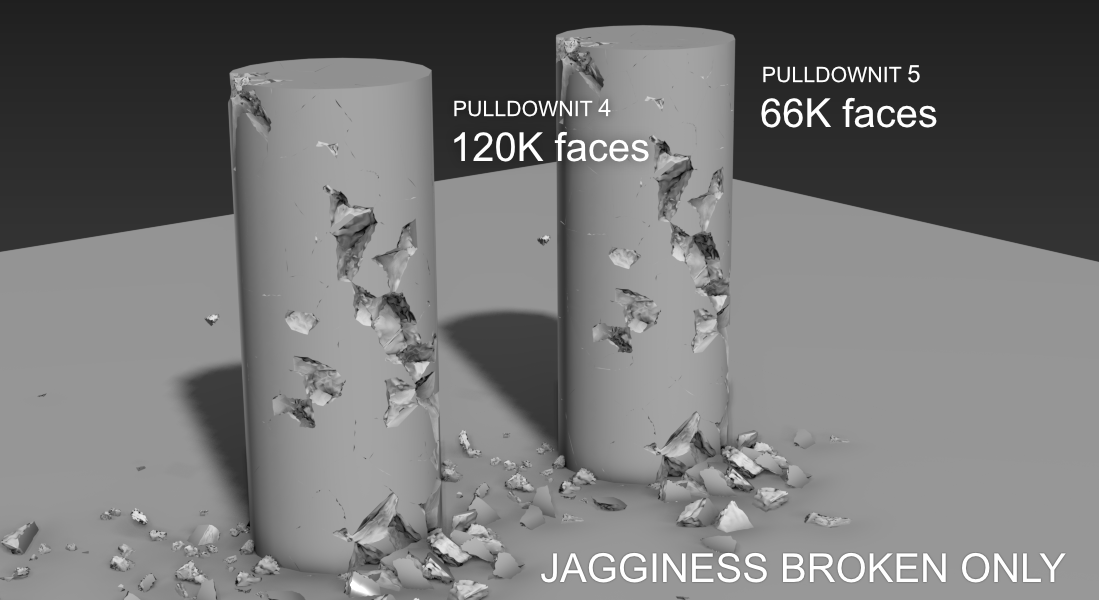

Jagginess, the ability to add roughness to cut faces, receives also an important update, by default jagginess now only applies to broken areas in simulation, getting lighter meshes for rendering or when exporting it to game engines.

There are several other performance and usability improvements you can review below and you can check the whole list of fixes in the Pulldownit version logs page:

Read the full list of fixes in the Pulldownit web site version logs

Licensed users can access already Pulldownit 5 from his account and there is a demo version for 3ds Max 2022 in the Thinkinetic web site.

Shatter New Features

New Extent parameter for Shatter it tool, this new parameter allows to shrink the shatter region in a visual way, making very easy to increase the density of fragments in any area of the model.

New ability to exclude part of the curve in Shatter it, simply by dragging the mouse you can select the extent of the curve to be used for shattering, as many times as needed, therefore one single curve is enough for all reshattering operations.

Jagginess applies to broken fragments only, by default Jaggines now only applies to the areas which has been broken in simulation, getting lighter meshes for rendering or exporting it to game engines.

Dynamics New Features

PDI Fracture Solver 2x faster, scenes involving hundreds or thousands of fragments in dynamics now computes around 2 times faster with the same stability than previous version

Improved quality of Fracture solver, cracks are now more realistic, pulling out small fragments in borders of fracturing areas without the need of further adjustment.

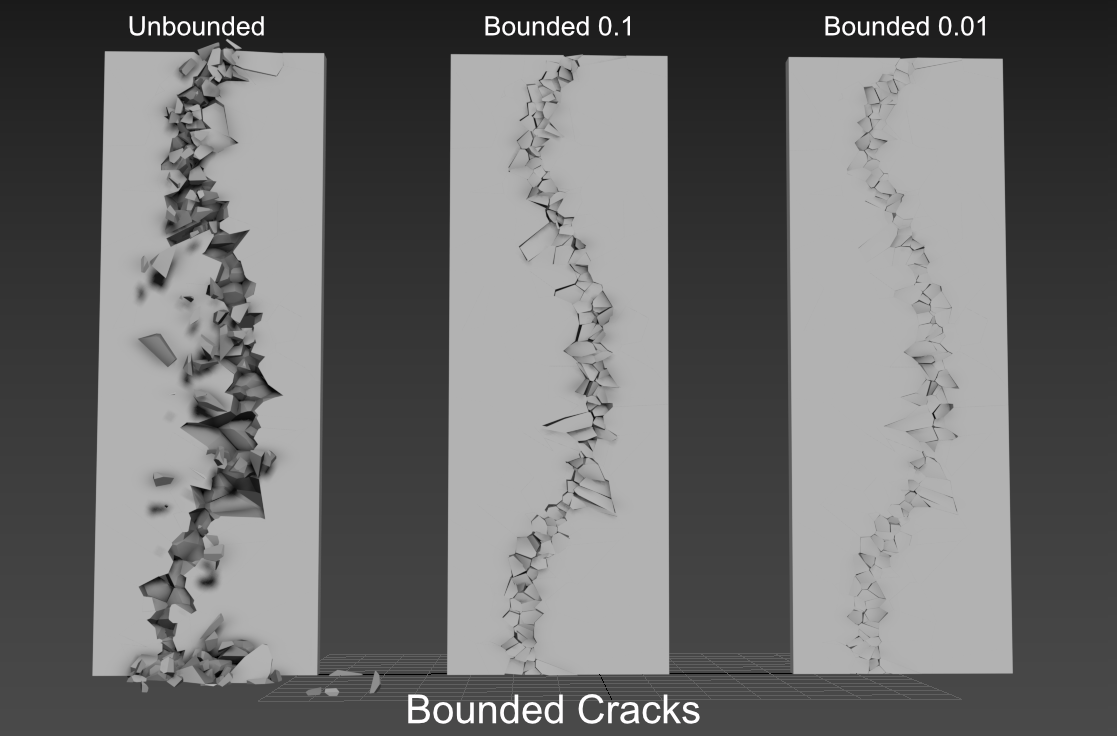

New bounded behaviour for crackers, user can now control the distance detached fragments can move, from making them stick on the surface to let them free and falling.

UI Enhancements

New ability to reverse Cracker direction, reverse a dynamic crack is now as easy as click on the panel button.

Create fracture body 2x faster, fracture bodies made of thousands fragments now needs only a few seconds to be created by PDI solver.

Create and modify fracture clusters is an almost instant operation.

Improved visualization in Stresses View, when in Stresses View all fragments are now displayed in solid colour, regardless of its material.

Stresses view “break at frame” clusters are now displayed in green color, in this way user can quickly identify clusters set to break at frame( green) from the rest.

Shatter Text Effects in Maya with Pulldownit

Posted on by
Reply

In this new tutorial Esteban Cuesta show us how to create appealing 3d text shatter effects in Maya using new features for destruction included in Pulldownit 5, in a few and easy to follow steps he shows how to crack letters in diferent ways or turn a 3d text dynamic to get a nice crumbling effect, worth to review it.

More news are coming in September, until then have a great holidays!

Cracking a Moai statue with Pulldownit 5

Posted on by
Reply

Ideaform3d has published a nice tutorial showcasing Pulldownit new bounded cracks feature. The tutorial shows step by step how to create a crack along a Moai statue all inside Maya 2022 using PDI plugin,

Project files can be downloaded by clicking in the link included in the text of the tutorial below,

Ideaform3d is a youtube channel featuring nice and easy to follow tutorials showcasing useful plugins and scripts for Maya, 3dsMax and After Effects, worth to check it!

visit Ideaform3d Channel

Pulldownit 5 for Maya released

Posted on by
8

Pulldownit 5 for Maya is here! and brings important updates in performance and usability, fractures solver now computes at least 2 times faster and gets more debris in impact areas without the need of further adjustment.

Create long surface cracks is now much easier, a new ability to shatter along part of a curve, lets user refine the crack as many as needed in a visual way. Reversing dynamics cracks involves just one click, besides surface cracks can be bounded, so broken fragments are forced to stick on the surface or fall as desired.

Jagginess, the nice ability to add roughness to cut faces, receives also an important update,  by default roughness now only applies to broken areas in simulation, getting much lighter meshes for rendering or when exporting it to game engines.

There are several other performance and usability improvements you can review below and you can check the whole list of fixes in the Pulldownit version logs page:

Read the full list of fixes in the Pulldownit web site version logs

Licensed users can access already Pulldownit 5 from his account and there is a demo version for Maya 2022 in the Thinkinetic web site.

Shatter New Features

New Extent parameter for Shatter it tool, this new parameter allows to shrink the shatter region in a visual way, making very easy to increase the density of fragments in any area of the model.

New ability to exclude part of the curve in Shatter it Draft Mode, simply by dragging the mouse you can select the extent of the curve to be used for shattering, as many times as needed, therefore one single curve is enough for all reshattering operations.

Jagginess applies to broken fragments only, by default Jaggines now only applies to the areas which has been broken in simulation, getting much lighter meshes for rendering or exporting it to game engines.

Dynamic New Features

PDI Fracture Solver 2x faster, scenes involving hundreds or thousands of fragments in dynamics now computes at least 2 times faster with the same stability than previous version.

Improved quality of Fracture solver, cracks are now more realistic pulling out small fragments in borders of impact or detaching areas without the need of further adjustment.

New bounded behaviour for crackers, user can now control the distance detached fragments can move, from making them stick on the surface to let them free and falling.

New Add Particles option “Visible Faces Only”, when combining fragments to emit from, this new option spread nParticles only over the visible faces of the combined node.

UI Enhancements

 Load PDI scenes 2x faster, massive destruction scenes now load at least 2 times faster in Maya.

New ability to reverse Cracker direction, reverse a dynamic crack is now as easy as click on the panel button.

New option to update Cracker Path when user changes reference curve.

Create fracture body 4x faster, fracture bodies made of thousands fragments now needs only a few seconds to be created by PDI solver.

Stresses view “break at frame” clusters are now displayed in green color, when in Stress View  user can differentiate easily clusters set to break at frame( green) from the rest.

Create fracture cluster is now an almost instant operation.



Pulldownit 4.5 for Maya released!

Posted on by
Reply

banner4-5

Our focus in this new update of Pulldownit plugin for Maya is making  user experience smoother and more responsive for FX artists and freelancers, we realize Maya is broadly used for animation so we have gone deep into the solver code and got a much faster update per frame of deforming meshes, so now there is almost no performance penalty for character skins or nCloth shapes included in PDI dynamics as kinematic objects.

Besides as any realistic destruction effect needs dust around we are glad to introduce a new tool “Attach particles to fragments”, by using this little utility you can stick Maya nParticles to faces per material and therefore emit easily fluids or additional debris from inner faces only, removing the need to go to another DCC tool to paint a white and black map as guide for emission, of course you can still use this classic workflow in Maya, this new tool is just an alternative a fast way to emit from selected faces only, actually this tool can be used for any task you need to attach particles to faces in Maya aside PDI itself.

Esteban Cuesta has done this great tutorial showing some of the enhancements inside Pulldownit 4.5 and featuring how to emit dust from fragments using this new PDI tool along with Maya fluids.

Also several fracture parameters can now be animated if you need to, and we have added a new event to switch cracks propagation mode at desired frame, so you can make your model getting damaged locally for some time and then destroy it completely at specific frame just by enabling this event.

And there are more enhancements regarding usability, a new tool for easier fragments selection when creating clusters from small shards, generation of different takes for standing models getting damaged is now an easy task with the improved behavior of “Static-Only Break” fracture option and quite a few annoying bugs of previous version has been fixed.

Below listed the most relevant highlights in Pulldownit 4.5

 NEW FEATURES

New Tool for adding particles to faces per material, this little utility spread Maya nParticles over faces per material, so you can later emit easily extra debris, dust or smoke only from chosen faces.

emmitMayaParticles

Hi-poly animated meshes 3x times faster update in dynamics, animated or deforming meshes such as character`s skin are now updated very fast during simulation providing a smoother experience when including them in destruction scenes.

New “increase Selection” option for easier clusters creation, selecting groups of small fragments is much easier now using this new tool which select neighboring fragments in the same area just with one click.

“Only Breaks” fracture option captures larger cracks and detachments, this useful feature forces the model to stand while being impacted, its behaviour has been improved so now it can generate larger cracks and detachments when they doesn’t jeopardize the overall structure, this effect is more noticeable when using it in conjunction with Clusterize level.


Fracture body Friction, Bounciness, Sec cracks and Damping parameters can be animated, get more artistic control over your fracture simulation by animating these parameters if needed.

Rigid body Friction, Bounciness, and Mass parameters can be animated, get more artisitic control over your rigid bodies simulations by animating these parameters if needed.

Added ability to change propagation scheme at frame, user can now damage an object only locally for some time then change to continuous propagation at desired frame to break it completely.

local2continuosFracture

New option to show/hide/select all disabled rigid bodies in scene, it is easy to lost track of disabled rigid bodies, with this handy new option you can select all at once to enable or delete them or hide from the viewport all disabled rigid bodies with just one click

Adquire Shatter can transfer animation from single shape node to multi shape nodes, transferring fragments animation to nodes with multiple combined shapes is now supported by Shatterit tool.

Read the full list of fixes in the Pulldownit web site version logs

Breaking Letters Demos by Esteban Cuesta

Posted on by
Reply

These are the  breaking letters demos Esteban Cuesta made  as a final example of his tutorials on shattering text with Pulldownit plugin, you can find this tutorial a couple of articles below. Esteban Cuesta kindly explains some details about the making steps.





I wanted to make a video as a final demostration of my breaking letters tutorials with Pulldownit 3.7, I designed demo #1 as a classic letters intro, quick and lively, the motion of each word is animated until it touch the word below, then I activate the fracture bodies so pieces of letters start to crumble and fall, I used a Wind field to stress the debris falling effect. The final destruction was as easy as animating the word “Pulldownit” so it pass through the whole text and set it is a kinematic rigid body but I switched to “Convex hull” Bounding Volume to speed up the testing, the dynamics looked good anyway so I used it for the final shot too.

Doing the first shot wasn’t difficult at all and pretty funny, this encouraged me to make a longer one. This time a decided to add a plate showing the different shatter styles of Pulldownit with letters, all styles except “Wood splinters” as I think this style doesn’t make sense for letters.



All sets are done in the same way, using the 3D Max text tool to generate each word and making the endings fit each other simply by adjusting text size and kerning, and then collapsing all the words in a single poly object. At this point I applied the intended shatter style and create a fracture body for all pieces. For the Radial style plate I used an animated sphere to trigger the destruction, I simply hid it when rendering the scene, for the Path style I used the great crackers objects of Pulldownit as triggers, the rest of plates uses a Wind field to trigger the destruction, animating its Strength in order to get a increasing amount of falling debris.

Rendering was done using Mental ray in 3D Max, applying a high reflectance material to the letters and a less polished glossy material with the same colour to the inner faces after breaking.

Pulldownit worked very well , I haven’t any issue aside tweaking the parameters to get the dynamic behavior I wanted, It was very intuitive and fast computing using it.
